Installation Picture Guide

Required Installation Photos

Jump to Section:

• 1. House from street
• 2. All roof surfaces before installation
• 3. All roof surfaces after installation
• 4. All outdoor equipment (wide shot)
• 5. All indoor equipment (wide shot)
• 6. Rail wire management before panels installed
• 7. Rail wire management after panels installed
• 8. Ground rods
• 9. Optimizer/Microinverter map
• 10. Junction box (if attic run)
• 11. Module model
• 12. Inverter model spec sticker / Combiner box
• 13. Major shading obstructions
• 14. Trenching (Ground Mount only)
• 15. Pre-existing property damage
• 16. Damage caused during installation
• 17. Add-ons (battery, generator, etc.)
• 18. Proof of PTO Application

---

1. House from street

• Must include visible street numbers to verify property location.

2. All roof surfaces before installation

• Wide shot showing all areas where arrays will be installed.

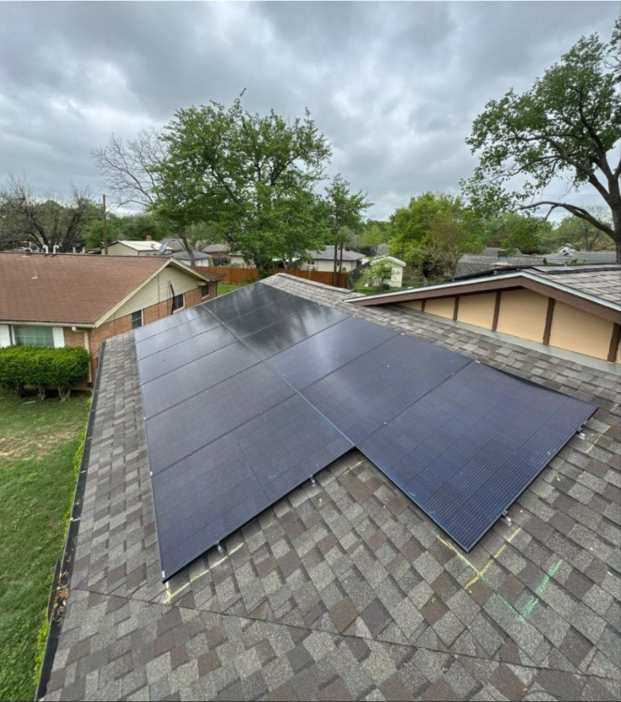

3. All roof surfaces after installation

• Wide shot showing installed arrays; should match the planned layout.

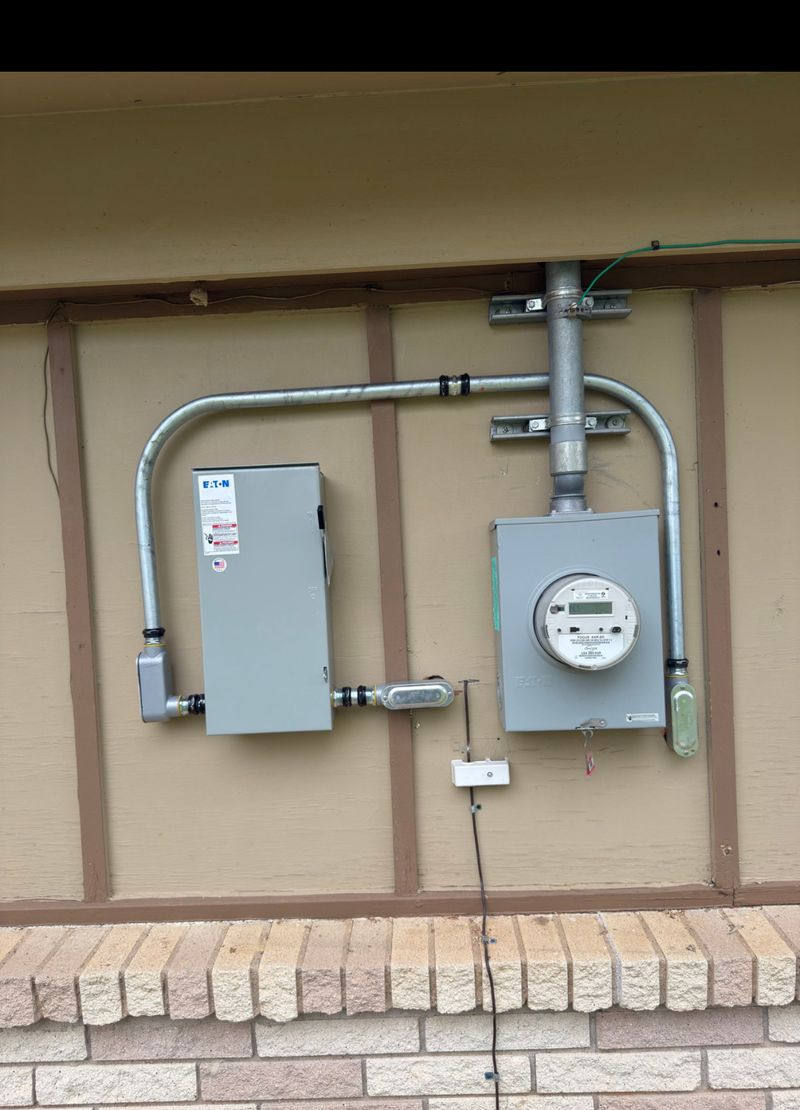

4. All outdoor equipment (wide shot)

• Show layout and connection between outdoor devices (e.g., meter, inverter, disconnects).

5. All indoor equipment (wide shot)

• Show layout and connection between indoor components (e.g., breaker box, controller).

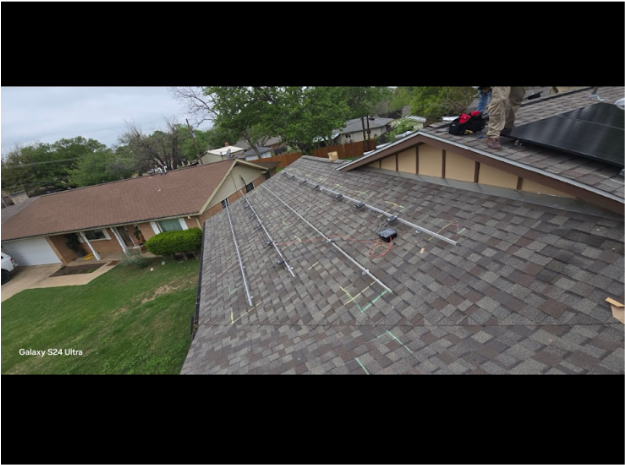

6. Rail wire management before panels installed

• Photo of the wiring before modules are mounted on the rails.

7. Rail wire management after panels installed

• Photo taken under the panels showing that wires are secure and not hanging.

8. Ground rods

• Clear photo of all installed grounding rods (if required by system design or local code).

9. Optimizer/Microinverter map

• Must be clearly legible and match the array layout; illegible photos delay processing.
• Notice: Labeled in Almika Portal as "Panel Serial Numbers".

10. Junction box (if attic run)

• Labeled by location, showing proper installation according to code.

11. Module model

• Clear, legible photo of the back of a solar module to verify model number.

12. Inverter model spec sticker / Combiner box

• Photo of inverter sticker or combiner box to verify inverter model matches monitoring SN.

Additional Photos (If Applicable)

13. Major shading obstructions

• Document trees, poles, or other objects that could affect solar production.

14. Trenching (Ground Mount only)

• Photos of trench before and after backfill, per permit requirements.

15. Pre-existing property damage

• Document any damage before starting installation (optional, but no photo = no prior damage).

16. Damage caused during installation

• Document any accidental installation damage (optional, but no photo = no damage occurred).

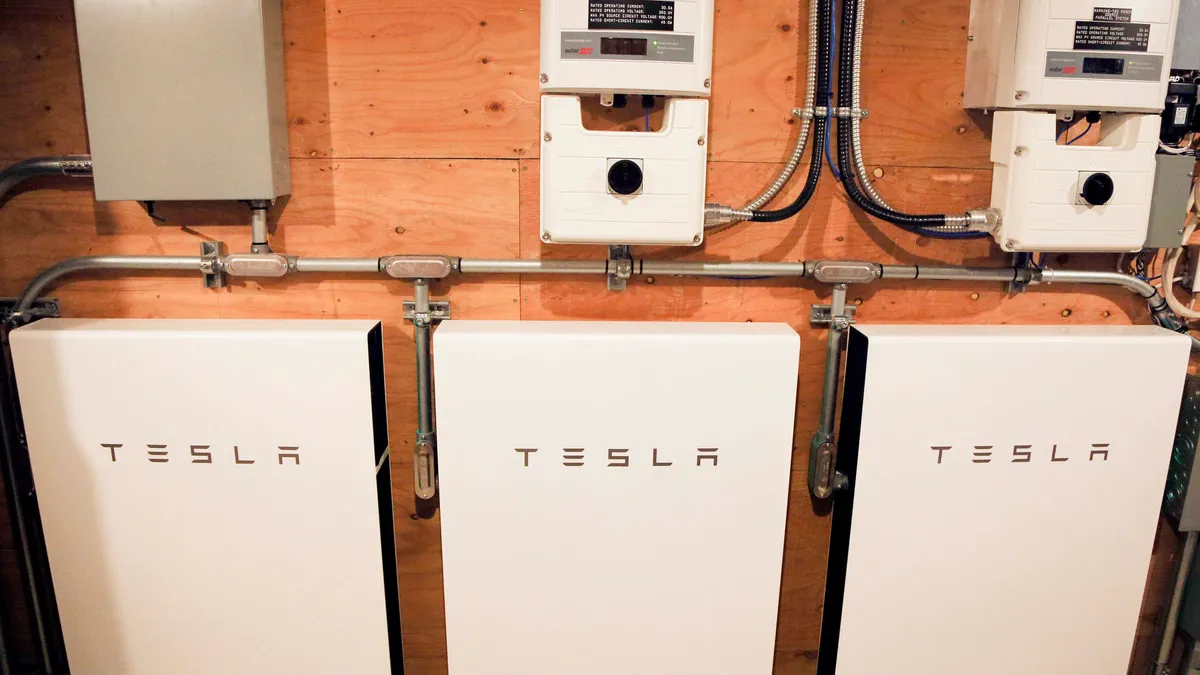

17. Add-ons (battery, generator, etc.)

• Photos of any additional installed products.

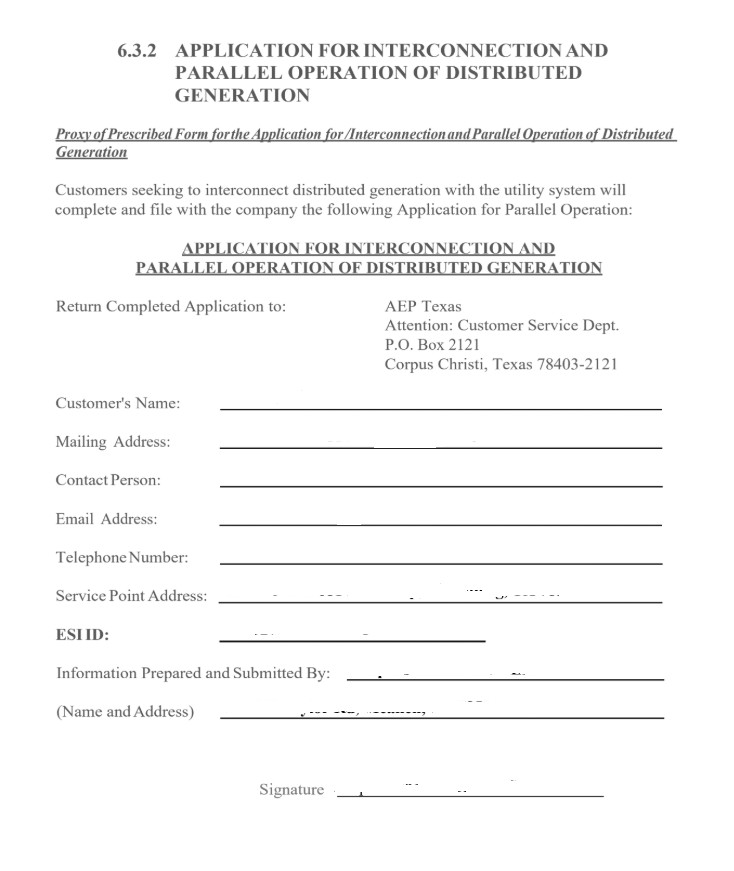

18. Proof of PTO Application

• Photo of PTO application sent out.
